| 원래 장소: | 중국 |
| 브랜드 이름: | YU SHENG DA |
| 인증: | CE |
| 모델 번호: | YD-IP-I |
| 최소 주문 수량: | 1개 세트 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 나무 상자 |
| 배달 시간: | 계약금 40 일 뒤 |
| 지불 조건: | L/C (신용장), 전신환 |
| 공급 능력: | 10은 / 달에서 설정합니다 |
| 애플리케이션: | 산업용 롤 | 속도: | 200m/min |
|---|---|---|---|
| 날것 패런트 롤 폭: | 1400-3500mm | 페르퍼레이션: | 2 PC |
| 모터: | 시멘스 | 터치스크린: | 델타 |
| 전압: | 380V, 50 HZ 또는 CUSTOMERIZED | 차원(L*W*H): | 6200*2200*2200mm |
| 애프터 서비스는 제공되었습니다: | 해외로 기계류, 비디오 기술 지원, 온라인 지원, 현장 유지 보수와 수리 서비스, 현장 설치를 서비스할 수 있는 엔지니어들 | 상태: | 새롭습니다 |
| 보증: | 일년 | 전원(w): | 7.5kw |
| 제품 유형: | 기계를 만드는 화장지 | 처리식: | 기계를 만드는 화장지 |
| 강조하다: | 150m/Min Machine,150m/Min 화장지 두루마리 machine,150m/Min 휴지를 만드는 두루마리 휴지는 성형기를 회전시킵니다 |
||
Steel Embossing Paper Roll Rewinding Machine And Toilet Roll Cutting Machine
Description
High Performance Big Toilet roll Cutting and Rewinding Machine has the function of producing both Jumbo Toilet Tissue(Industrial roll) and normal Toilet roll. The
slitting and rewinding can be synchronized done
Specification
|
Machine Model |
1092 |
1575 |
2000 |
2200 |
2500 |
2800 |
3000 |
|
Raw Material Width |
1300 |
1800 |
2000 |
2200 |
2500 |
2800 |
3000 |
|
Finished Roll Diameter (mm) |
Φ90~300 ((Tightness adjustable) ) |
||||||
|
Raw Material Diameter (mm) |
Φ1200 mm (Other sizes are available ) |
||||||
|
Raw Material Core Diameter |
76.2 mm Other sizes are available) |
||||||
|
Perforation(mm) |
90~160mm |
||||||
|
Speed |
150-200 m/min |
||||||
|
Rewinding |
By air-shaft |
||||||
|
Embossing Unit |
Single ply embossing, double ply embossing, steel to steel embossing |
||||||
|
Bottom Embossing Roller |
Felt roller, Paper roller, Rubber roller |
||||||
|
Unwinding Unit |
1-3ply |
||||||
|
Calendering |
Steel to steel, steel to rubber |
||||||
|
Pneumatic System |
3 HP air compressor, Mini pressure 5kg/cm2 Pa(Provided by client) |
||||||
|
Power |
4.5-11 kw |
||||||
|
Dimension(mm) (L×W×H) |
6200x2600x1800~6200x4000x1800 mm |
||||||
|
Weight |
depend on the size and configure |
||||||
|
Option |
|
||||||
|
Embossing Unit |
Single ply embossing, double ply embossing, steel to steel embossing |
||||||
|
Bottom Embossing Roller |
Felt roller, Paper roller, Rubber roller |
||||||
|
Unwinding Unit |
1-3 ply |
||||||
|
Edge Embossing Unit |
Option |
||||||
|
Calendering Unit |
Steel to steel, steel to rubber |
||||||
|
Tail Suction Unit |
Vacuum tail suction function, 1.5kw |
||||||
|
Tail Sealing Unit |
Option |
||||||
|
Driving system |
Frequency conversion speed regulator |
||||||
Functions and Features
1 . Rewingding control: automatic pneumatic proportional valve controls linear slide rail lifting,hydraulic servo system controls riding roller, pneumatic grasping rewinding shaft.
2 . Slitting bottom blade: one piece blade shaft or movable double-blade knife; bottom blade easy change function.
3 . Rewinding shaft lifting rail: front & back rewinding rollers roller speed differential + riding roller control final product tension and neatness of both ends.
4 . Bottom blade quick-change function
5 . Spreading auxiliary roller (optional).

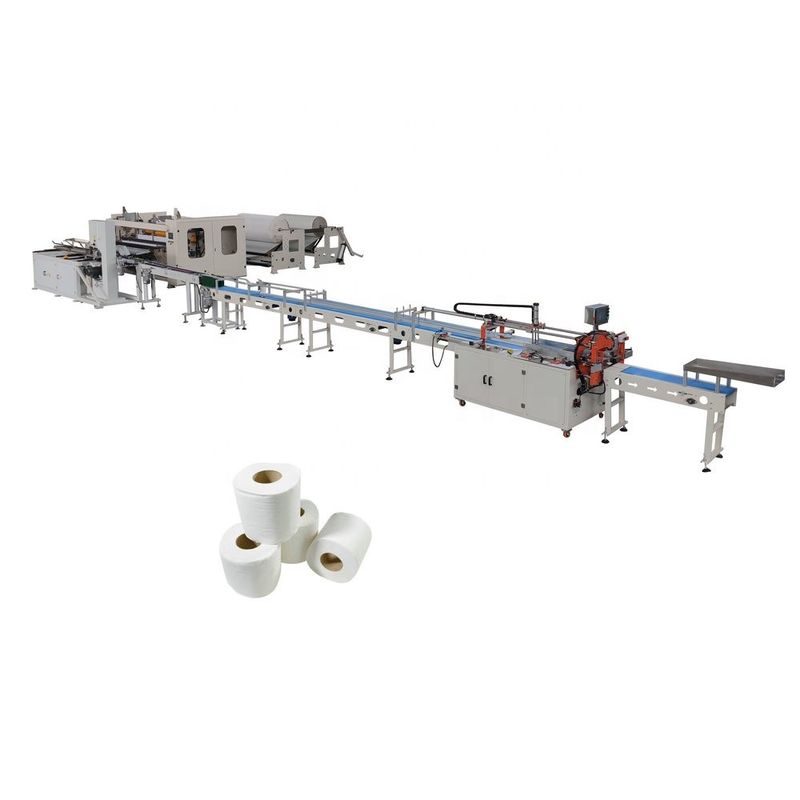

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:

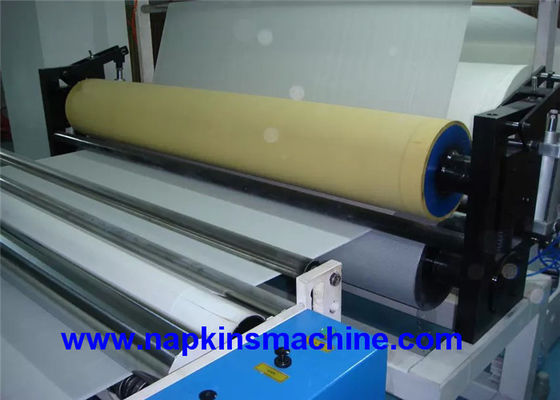

Machine Detail Pictures:
Deco Color Lamination Parts:

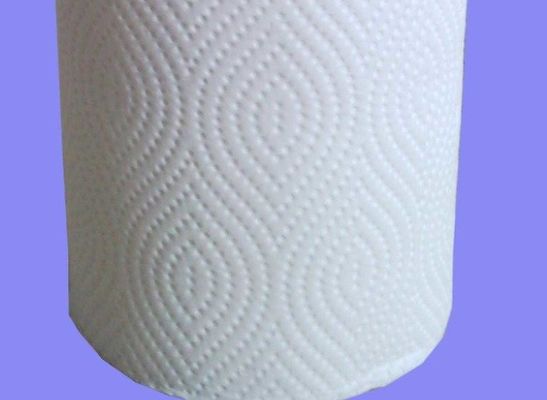

Finished Products:
